NPTF/PTF THREAD GAUGES

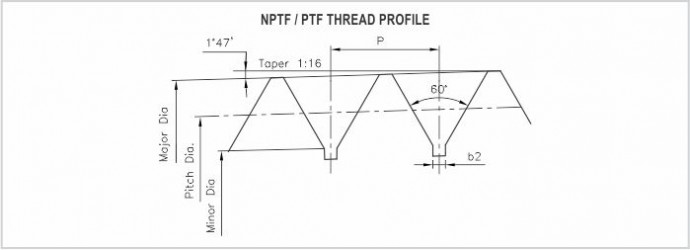

NPTF THREADS can provide pressure tight seal on threads without use of a sealing compunt (Dry Seal Type). They are used in pipe assemblies where without using sealing compound pressure tight joint is required on threads. PTF Threads are similar to NPTF but short in length. PTF threads are used in applications similar to NPTF.

Specification

ANSI/ ASME B1.20.6 – 1984 which is Metric translation of ANSI B1.20.5-1978 &  American Handbook H-28 Part II – 1957.

Manufacturing Range

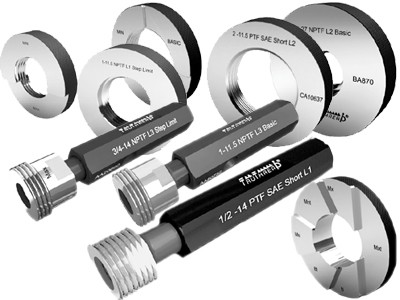

Taper Thread Plugs L1 & L3 in both Basic & Step Limit Design,  Plain Taper Plugs to check crest of Threads,
Taper Thread Rings L1 & L2 in both Basic & Step Limit Design, Plain Taper Rings to check crest of external threads (6 step design), Master Check Plugs to check Thread Rings L1 & L2.
