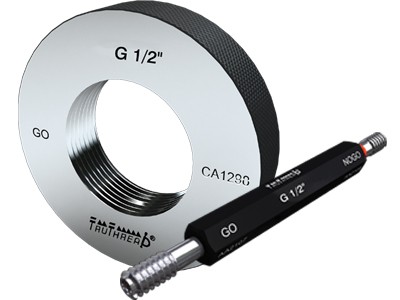

PIPE / G THREAD GAUGES

Pipe / G Threads are used for general purpose pipe fittings where pressure tight joints are not required on Threads

Specification

ISO Standard: Basic Dimensions: ISO 228 (1) – 2000 & Gauging Practice: ISO 228 (2) – 1987.
British Standard – BS 2779 – 1986.
Indian Standard – Basic Dimensions: IS 2643 – 2005 &  Gauging Practice: IS 10216-1988.
Japanese Standard: JIS B 0202-1999.

Manufacturing Range

Pipe Diameter 1/16 to 6″   Above 6″ Diameter sizes (PF) are manufactured as per JIS B JIS B 0202-1999.
