Specification
Basic Dimensions: ISO 286 Part 1 & 2 – 2010/ IS 919 Part 1 & 2 1993.
Gauging Practice: DIN 7164 – 1966 & IS 3455-1971 / IS 7876-1975.
Gauging Practice: DIN 7164 – 1966 & IS 3455-1971 / IS 7876-1975.
Manufacturing Range

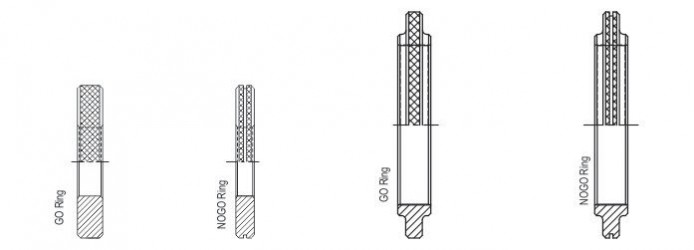

Limit Type Plain Ring Gauges (Go & Nogo) – Diameter 1 mm – 300 mm.
We can supply Ring Gauges from Diameter 4mm – 60mm in Tungstan Carbide, on request.
For more Technical Details download Technical Information sheet from link given below.
