Specification
Basic Dimensions: ISO 286 Part 1 & 2 – 2010/ IS 919 Part 1 & 2 1993.
Gauging Practice: DIN 7164 – 1966 & IS 3455-1971 / IS 7876-1975.
Gauging Practice: DIN 7164 – 1966 & IS 3455-1971 / IS 7876-1975.

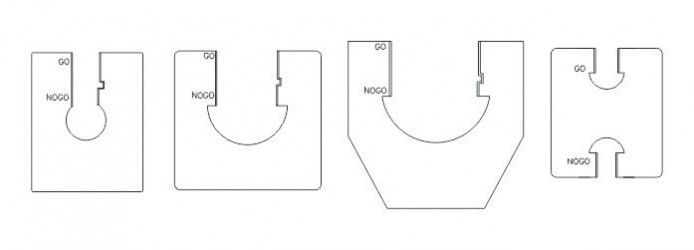

Manufacturing Range
Single end Prograssive Type – Diameter 3mm to 160 mm.
Double Ended (Separate Go & Nogo) – Diameter 3mm to 100 mm.
Double ended I Type Snap Gauge – Diameter 100mm – 300 mm.
For more Technical Details download Technical Information sheet from link given below.
