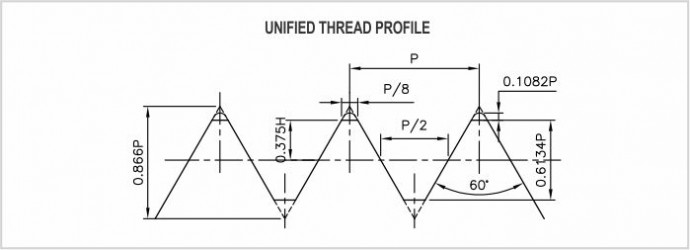

UNIFIED THREAD GAUGES

Unified Threads are used for general purpose fastening applications for Imperial system of units

Specification

ANSI/ASME B 1.2-1983.

Unfied Gauges Basic Dimensions as per BS 1580 Part 1 & 2 – 2007 & Gauging Practice as per BS 919 Part 1-2007 are manufactured if requested by customers.

Manufacturing Range

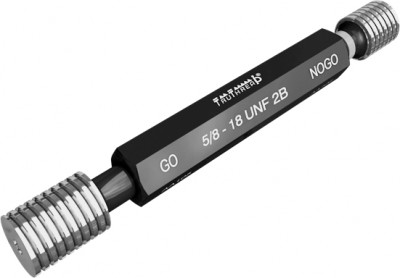

Thread Plug & Ring Gauges from No. 4 (0.112″) to 14″
